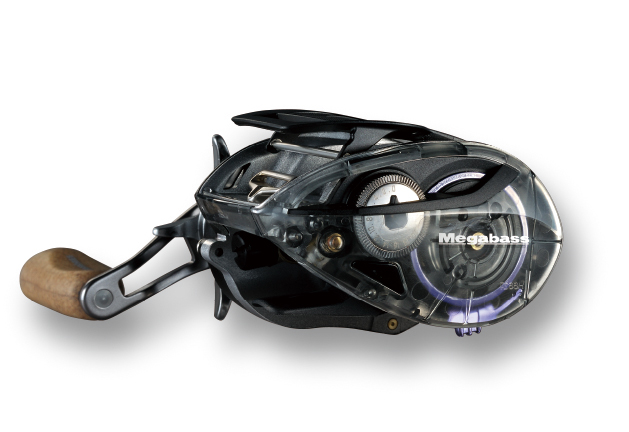

MEGABASS FX 68 L/R

In order to meet every method, to lure, has been developed as a full contact versatile machine of ultimate, "FX (flight Exclusive)" series, Amber finally. Also byte of landing the same time, it is possible to respond immediately with a finger that was put on the wing, FX Wing clutch that has been enhanced, starting gear can be instantaneous. High density carbon composite body of FX to the pursuit of high-precision standard, is finishing a full machine cut dare dish one article, exhibits high rigidity and overwhelming lightness.

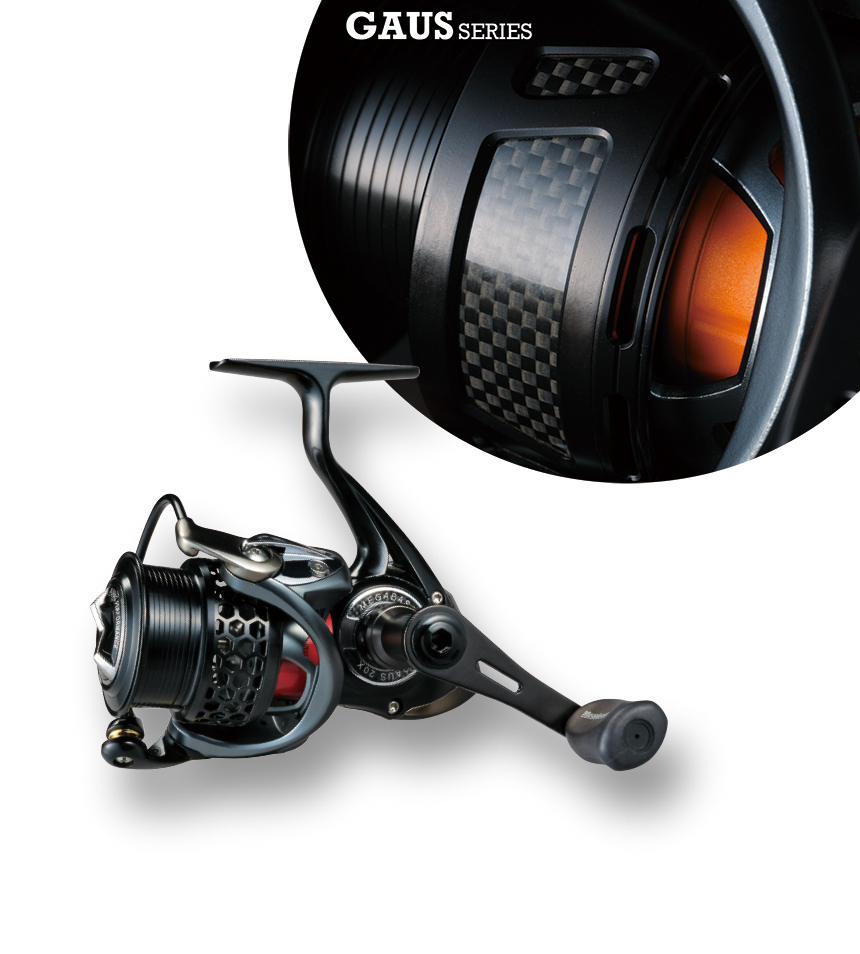

MEGABASS GAUS 20X

As its name suggests, to demonstrate the evil spirit that would attract everything, super compact reel, was unveiled at last. Gauss, has been developed to demonstrate in small body high power to overturn and toughness that I can not imagine a reference to this, as a spinning machine of the new generation of compact appearance of the appearance.

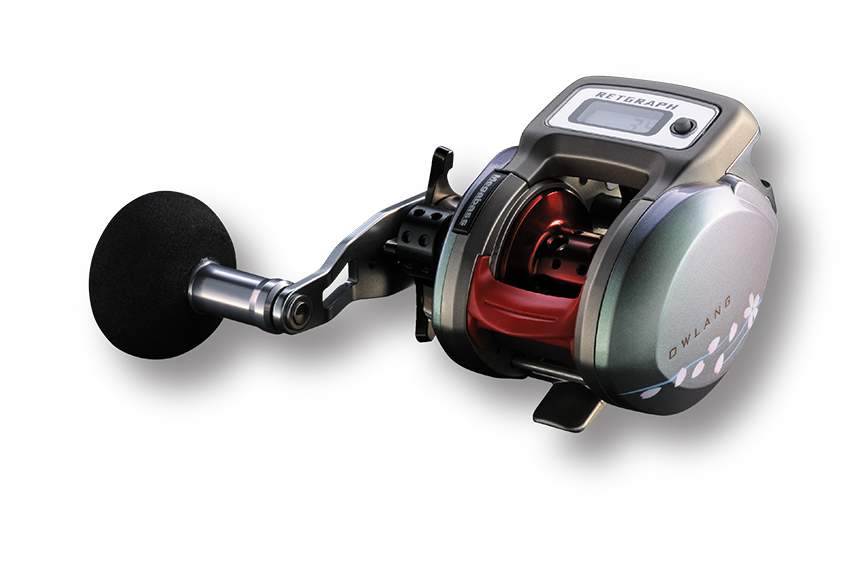

MEGABASS RETGRAPH OWLANG LIMITED

At the same time as the debut, digital vision system with reel of the wonder that had gripped the science Fisherman across the country in an instant "lithograph", Sakura turbulent Limited is an appearance.
Etc. "The most important distance to the bytes spot", "distance", "distance to lure retrieve medium" and "distance to the structure of the contact", non-contact, magnetic field generation formula computing system of the wonder "Digital Vision" But ultra-fast operation.

Megabass IS-73C

This super-tuned offering shares some similar components to the popular Diawa Steez model, but has been lightened to an astonishing 5.32 oz, and features a Magnetic Spool Brake (PAT.P) that provides speed-dependent variable anti-backlash control, carbon fiber handles, and that incredibly detailed fit and finish that can only come from Megabass.

MEGABASS FX KNUCKLE 60

The KNUCKLE 60 was developed in pursuit of the ultimate adjustable crank, and is built to exhibit increased effectiveness across a wider range of applications. The KNUCKLE 60 incorporates Megabass' unique FX System, utilizing a transformable square-bill lip that can be user-adjusted to target depths of 0-1ft or 4-5ft depending on conditions.

DAIWA Steez Hi Speed

Light weight meets “light speed” in our new Magnesium-bodied 103SHA and 100SHA Steez baitcasters with blazing fast 7.1:1 retrieve. The lightest baitcasters of their kind are now also among the world’s fastest. Cast all day long without fatigue. Rip lures back to the boat and cover water with incredible ease. Overtake big bass with unmatched power, precision and performance.

You won’t want to fish with anything else. Matches perfectly withSteez Bass Rods.

Rapala Knot

The Rapala Knot forms a non-slip loop at the end of a line. Making a loop connection to a fly or lure can give it more action. This one is named after the lure company that popularized it as a means of connecting their lures to monofilament line.

1. Tie a loose overhand knot and feed the tag end through the eye and back through the overhand knot.

2. Make 3 turns around the standing line and bring tag end back through overhand knot.

3. Pass tag end through loop that is formed.

4. Moisten line. Pull on standing line while holding tag end to close the knot. Pull on both tag end and standing line to tighten down the knot.

Rapala BX Minnow

With the patent pending construction combining a balsa core with a durable co-polymer outer body, the BX Minnow features a super responsive action that comes alive with the slowest of retrieves and the most delicate twitches. Yet it can handle fast, aggressive retrieves and take a beating from toothy, strong predators. Precision weighted for perfect balance and long casting.

Features:

• Balsa Body Inside
• Durable Copolymer Shell
• Molded 3D Head, Gills and Scales
• Internal X-Foil
• Flat-Sided with Strong Flash on Roll
• Black Nickel VMC® Hooks
• Floating
• Incredible Life-like Finishes
• 3D Holographic Eyes
• Hand-Tuned & Tank Tested

How to Fish

Very responsive to even the slowest of retrieves and slightest of twitches, the BX Minnow can be used for very subtle presentations. But its unique combination of rolling and wobbling action allows for a variety of speeds and presentations.

The BX Minnow is a slow-rising floater, which makes it ideal for stop and go presentations and shallow water fishing.

For a more aggressive presentation, use snappy twitches with the rod tip to create a darting action. Longer twitches will create a side-to-side darting action with lots of flash.

BX Concept

Combining the unmatched responsiveness of balsa with rugged durability of plastic, the Balsa Xtreme opens a new era in fi shing lures.

The new, patent pending BX construction uses a tough, transparent plastic shell to encapsulate a balsa wood inner body. The perfectly balanced balsa core with precision placed weights gives the lure a lively, super responsive action that can be achieved only with balsa.

The tough copolymer outer shell allows ultimate toughness and life-like fi nishes with 3D scales, lateral line and gill plates with a combination of metallic, translucent and painted fi nishes unlike anything seen on balsa lures before.

Truly the ultimate combination.

Specifications

Model Number	Running Depth	Body Length	Weight	Treble Hooks	New
BXM10	0.9-1.5 m	10 cm	12 g	Two No. 4

Main Components and Functions Together Indoor Fishing Reel

This time I just wanted to share the names of the main components of a  fishing reel . Perhaps many people know it, but those who are still not very  familiar  with the names of these components. picture below shows you the names of the main external parts of a fishing machine.

these names are commonly used by the  Designer, Engineer, Production side  or  sub-con  involved in this fishing industry.


photograph shows the names of the major external components of a fishing reel .

Internal components and functions Main Fishing Reel

Once we know the names of the major external components of the fishing reel , this time I would like to introduce the names of the main internal components of the  fishing reel . Perhaps many have known based on Explode view  attached along the fishing reel when to buy it, but this time I want to introduce the name and function of each component. photograph shows the main internal components of a Fishing Reel When we turn the  handle  of a  fishing reel , round handle  will be transferred to the  handle shaft  connected to the  drive gear . 1)  Drive gear . Gear  is a  gear  in the main  fishing reel . The strength of this gear will be determining the strength of a  reel . Normally, they are made ​​of various materials such as  stainless steel, zinc or aluminum  and goes through various treatment processes for strengthened.  Gear ratio  and  rotation feeling associated with design and materials used to produce the drive gear  is. 2)  Pinion Gear Turn  Drive Gear  will be transferred to the  Pinion Gear. Pinion Gears are usually made ​​of  Brass  for models more expensive and zinc  if models are priced quite cheap.  Rotors are attached to the  pinion gear  system to allow stacking  line function (  Line Winding ).  Pinion Gear  is usually connected also to  Idle Gear . 3 )  Idle Gear  and  Shaft Worm . It serves as a vehicle to move round the Pinion Gear  to  shaft play .  Worm shaft  and  Idle Gear which enabled the  spool  moves down and up. Turn influence the order  line  on the  spool  when anglers  line wind  them back. 4)  Roller Clutch It is a combination system  roller bearings  and a few other components to produce a motion in one direction only.  Roller Clutch is quite advanced technologies in system  anti reverse system is compared with  Ratchet  used before. Hopefully this article can help to increase the knowledge of the fishermen on the reel used.

The picture shows the main internal components of a Fishing Reel

When we turn the handle of a fishing reel, pusinganhandle will be transferred to the handle shaft connected to the drive gear.

1) Drive gear.

This gear is the main gear in the fishing reel. The strength of this gear will be determining the strength of a reel. Normally, they are made of various materials such as stainless steel, aluminum zinkatau and goes through various treatment processes for strengthened. Gear ratio and rotational feeling associated with design and materials used to menghasilkandrive gears.

2) Pinion Gear

Turn Drive Gear Pinion Gear will be transferred to. Pinion Gearbiasanya made ​​of Brass for models more expensive and valuable zinc is relatively cheap model. Rotorakan attached to the pinion gear to enable the system to function compile line (Line Winding). Pinion Gears are usually connected also to Idle Gear.

3) Idle Gear and Shaft Worm.

It serves as an intermediary to transfer dariPinion round shaft gear to play. Idle worm gear shaft and this is what allows the spool to move down and up. Turn influence the order line in line spool when anglers wind them back.

4) Roller Clutch

System is a combination of roller bearings and a few other components to produce a motion in one direction only. Clutchmerupakan roller technology is quite advanced in anti-reverse system is compared with the ratchet system used previously.

Hopefully this article can help to increase the knowledge of the fishermen on the reel used.

Double Eye bond technique

There are many techniques bond hook or bytes. For this time, I want to display some hooks bonding techniques or bytes  that are commonly used by anglers.





Among the hook bonding techniques commonly used.



Among bonding techniques commonly used for the temple


while to bond to connect two ropes or hand line , there are several techniques that are commonly used.

aktikel hope this helps.

Sounds at Spool

This time I was drawn to the issue of  sound spool click .  Spool click  no sound or sometimes broken an issue that has been described by customers, buyers or anglers themselves. Before going further about the kite  spool click sound  , both function and design carefully kite  spool click  itself.

Spool click sound  produced when the  spool  turns. This noise comes from  cliker / drag click  mounted on the inside of the  spool. Click drag  or  clicker  or contact with the spool support the biasenya shaped like a gear or toothed. Function of this component is to provide a sound when rope / line  pulled out of the spool  especially when the bait is struck catches. Most anglers I ask usually feel less shock if there is no sound when the  line out of the  spool.

For  Engineer / Designer , the parameters that need to be cared for in production or design of  glass noodles spool click d is that it requires a strong sound but durable. Therefore, the engineer  or  designer  to design a study in itself click while other factors such as  material  or materials used.

Available various design  clicker  is. Among his is;

1)  Metal Clicker enggages with Metal Spool Support.


Figure 1  : The picture above shows the design of  metal vs. metal clicker .

To  design  this,  the clicker  can move left and right, meaning,  the spool  will emit even  spool rotated by counterclockwise or clockwise. The sound produced by the  design  is quite strong but short combination clicker and  spool support  or critical contact distance. If the distance bersentuhanya first, then  the clicker  quickly broken. Spring also play an important role, if the strongest  stiffness the same, but the sound will be loud clicker  will be quickly broken. Thus, the  customer  can actually  adjust the spring stiffness  by altering the spring a little corner using  long nose  pliers or a tapered nozzle. Most  design clicker  is used by models middle-rank  and  low rank  as part of this system is only involved in some  part  and quite cheap.

care Tips  clicker .

For  spool click the method to ensure the  spool click  durable is always  apply grease  on the spring or  punch area so that the friction between the clicker and punch rod is minimal. Actually the endurance of a  clicker  has limitations,  the clicker  has been tested at a speed round  spool  certain until it is able to withstand the required period or spec. Therefore, it is very important  drag setting  is done properly so that the spool click is not in the circumstances, the high velocity in the long term unless the catch obtained is very large and can not afford to keep him drag and cause  spool  berupusing with high velocity.


2)  Metal engages with plastics spool clicker support.


Picture 2  :  Spool click system  that is integrated with  drag system.

modular design used by the models are quite expensive as Shimano Stella because a relatively high level of durability and the sound balance and consistency. Normally sound  spool click  for design like this is only in one direction round the lap time out of the line  spool . Components involved in this system is also quite a lot. For tips on care, arguably this design maintenance free except to be cleaned if there is sand or other impurities significantly.

3)  Spring type spool support.


Picture 3: Spring type Spool Support.

Designing like this also widely used, particularly in most of the models Daiwa . The sound produced is uneven and the durability is also good. Sound will be produced by both the direction of the  spool  of rope either out or in.. Such design can also be said  free maintenance . Only if there are impurities or sand in the spring, then anglers should clean it.

In conclusion, all the  spool click syste m features its own advantages and disadvantages but all this depends on the parameters that need to be taken care of home buyers who demand sound strong and durable, while constrain faced is the design of  the clicker, material, engagement distance and  cost.

however, for the buyer to ensure that the method click spool  lasts longer is to make sure it is kept clean free of impurities, sand or rust. The rules are always doing maintenance to  apply grease  and  oil  in certain parts of the system spool click.

Fishing Reel Selection

Here are some tips shared good selection of fishing machine. Perhaps many among anglers are so expert in assessing the level of a fishing machine, for beginners to the world of fishing, hopefully this article can help.
the first assessment to be done after knowing the price of a fishing machine is the specification of an engine rod. This spec can be found by reading the information written on the outer surface of the rod machine box.


above picture shows a sample box fishing machine. Boxed set of all such information can serve as a guide in choosing the right machine with anglers fishing.

information needs to be considered are:

1)  Gear Ratio
Gear Ratio  or the Malay language is the gear ratio  gear ratio  between  the drive gear  with the  pinion gear or very simply between round  handle  with a round rod machine rotor  will compile  line  on  the spool . For example 5.0:1, it means 1 round  handle  would be equivalent to 5 times a round  rotor that will compile into the line  spool . Therefore, if there is a choice between 5.0:1 and 4.0:1, anglers need to wisely choose the right fishing rod for her machine. 5.0:1 will produce round rotor  faster than 4.0:1. Normally,  the gear ratio  is high for  top fishing  while the  gear ratio  is too low for  bottom fishing .

2)  Drag Force
The second thing that needs to be evaluated is the  Drag Force . It means how loud  spool  could resist the charm of fish, before it turned and rope will be out of  the spool . Normally, the drag force  will be preferred high. However, we should be assessing of a whole, although  drag force  high, but if the  body  fishing machine is made ​​of plastic or other non-intense, it's quite dangerous to anglers because fish are strong attractions can cause  body  machine broken and hurting anglers fishing.

3)  Weight  (weight machines rod)
Weight  or heavy fishing machine is usually displayed on the outside of the box.  Weight  shown is the average weight of the machine without the rope fishing ( line ), mean weight may be slightly higher or less than the weight displayed outside the box. Normally heavy fishing machine without strings is + / - 5 grams of weight value displayed. Lighter fishing machine that will be the choice of anglers.

4) Number of  Ball Bearing
Number of  ball bearings  found in a fishing machine should also be taken into account. This will produce a number of bearing and movement round  handle, rotor, spool  and  line roller  are smooth . The more the number of  ball bearings , the better a fishing machine. Number of  ball bearings  can be ascertained by reference to the  exploded view  which usually included along didalm fishing machine box.


Example Exploded View the common market.

5)  Stopper System
Stopper system  in several types, there are the kind of ratchet ,  20 points stopper system  or  roller bearings , better known as  roller clutch  for brand  Shimano .  Stopper system, the best so far are of the  roller clutch or roller bearings . This is because it does not give even a little space for  the rotor  to move back. Type stopper system  can be checked through the information you posted on the box or from the number of information  bearing . Usually expressed as the number of bearings will 1RB 10BB, this means that the machine mempunya 10  ball bearings  and 1  roller bearing .  roller bearings  refer to the  stopper system  is.


After we have examined all the  spec  and  feature  that was highlighted in the box or view Explode her, The second step is  checking appearance.  Inspection  appearance  nie only for the exterior only if there is  crack(fracture). To  scratch  or  dented , it is up to the buyer whether to evaluate the  defect or not.

Upon  checking appearance , the next step is  checking function . This time, I only display some functional examination techniques of a fishing machine. The first function of the normal examination or test is  Rotation Handle . This year's edition more emphasis on the  Spinning Reel .


Step One:

The picture above shows how to reel held for inspection.

Reel  shall be held as the actual fishing conditions. If possible attached to the rod, be more effective inspections. If circumstances do not permit, reel held as in the picture above, but without the rod. That was enough.

Step Two:

The picture shows a horizontal reel position.

By positioning  reel  horizontal, turn the  handle  slowly or occasionally in speed. This is called Feeling Rotation Test , the buyer will be able to feel the  gear matching either soft or rough. If the  rotation  feels rough, try to press in  the handle  towards the  body  while turning the  handle  does  gears feeling  the change. If change means gross gear problem just now only come from  gear looseness . The solution is to add him on the drive gear washer. If the  rotation  is still rough, though it added washer, this means that the surface of the gear rod machine does have problems. In addition to trying to feel the gear, the buyer is advised to also observe whether the  spool to move her up and down or not.

Step Three:

The picture shows a reel in 45-degree position.

Turn the  handle  to reel 45-degree conditions like in the picture above. This is to ensure round reel is positioned under normal bile like a real fishing conditions. There are cases where the round  handle is normal if the  reel  is horizontal, but will emit bile  handle  rotated by 45 degrees reel position.

Fourth Step:

The picture shows the vertical position of reel or 90 degrees.

final step for inspection  handle rotation  is turning the  handle  with reel upright 90-degree conditions like in the picture above. This step is for inspection oscillating system.  During the  handle  turned, there specifying the cases it will produce sound. This noise usually results from oscillating systems.  solution is to put grease on the  oscillating gear  or  worm shafts  depending on the system  adopted by a fishing machine. In addition, other problems will arise with this move is going to be heavy during the round  spool  position top or bottom.This shows that there is a problem in o scillating system  is.
